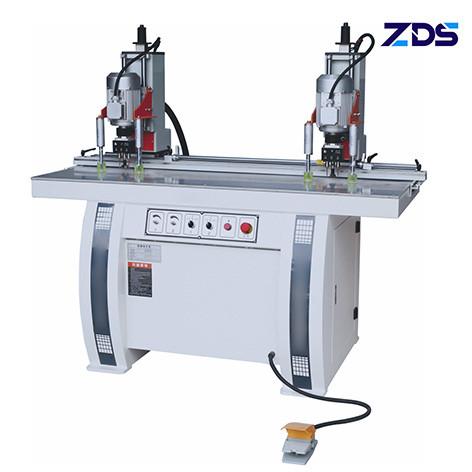

Double Head Hinged Hole Drilling Machine For Furniture Panel Processing
The hinge drilling machine is a commonly used hinge woodworking machinery in the production of panel furniture. It is suitable for panel furniture production. This machine is mainly used for the door hole link drilling of panel furniture. It adopts high-precision double track to ensure the movement and adjustment of the vertical shaft. It adopts imported standard drill row, which has high drilling precision. This series of products are mainly aimed at the hinge drilling of the loose-leaf machine. The drilling position can be adjusted vertically and horizontally, which is convenient and quick to adapt to the drilling processing requirements. It is an ideal equipment for cabinet and door processing manufacturers!
| Name | Double head hinge drilling machine |
| Mode | ZDS-73032 |
| Maximum drilling diameter | φ35mm |
| Maximum drilling depth | 50mm |
| Maximum processing length | 150cm |
| Drill chuck aperture | 3*2 |
| Spindle speed | 2840rpm |
| Air pressure | 0.6-0.8Mpa |
| Voltage | 380v |
| Power | 1100W*2 |
| Warranty period | 1 year |
| Application | MDF, partical/abs/artficial board |
| After-sales service provided | Online support |
| Produce name | Woodworking hinge drill, Cabinet door hinge drill |
| Overall dimensions | 170*80*155cm |
| Weight | 550kg |

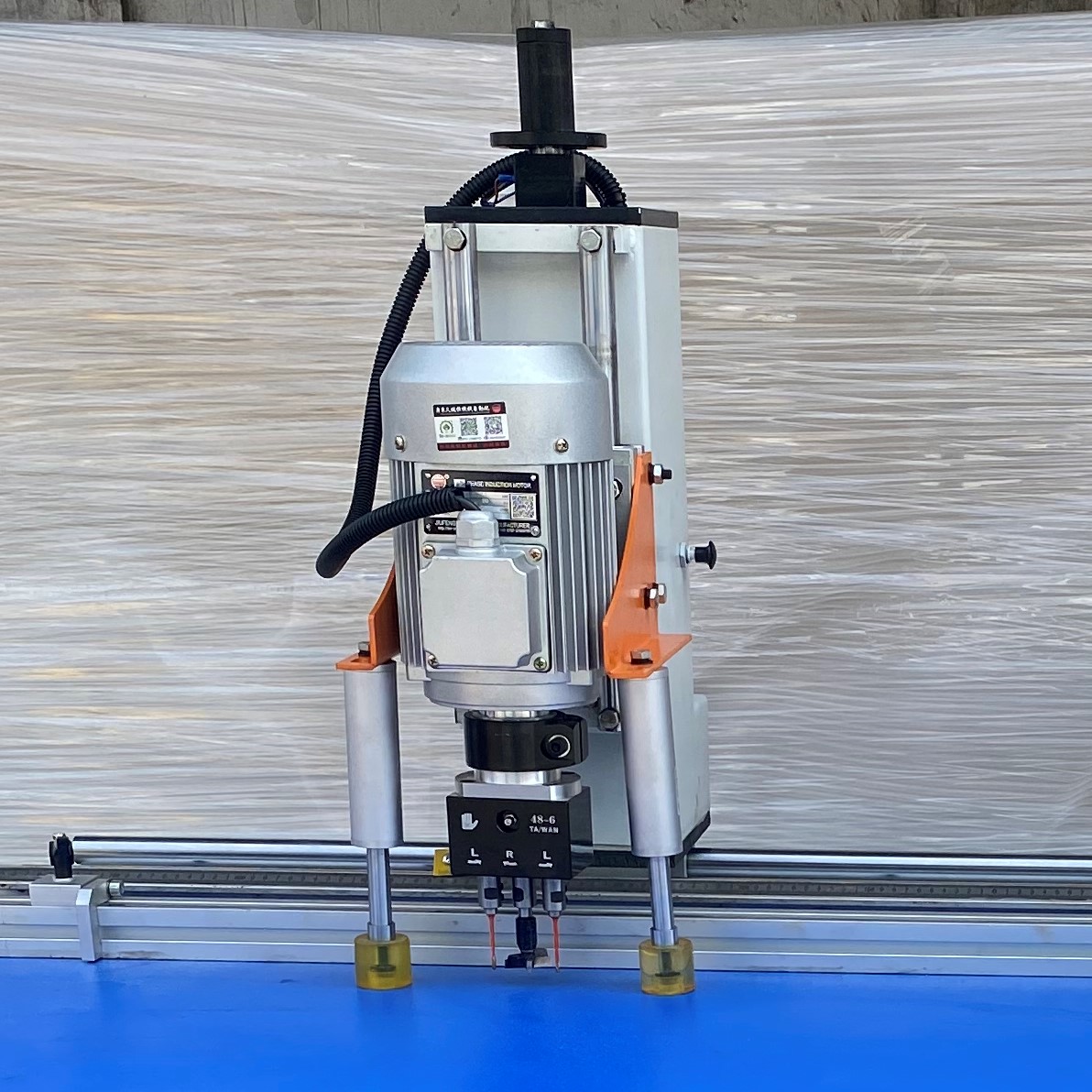

Upgraded large motor
This hinged drill dual motor adopts an upgraded version of the full copper core motor, which has good heat dissipation effect and sufficient power, which is more efficient than ordinary motors.

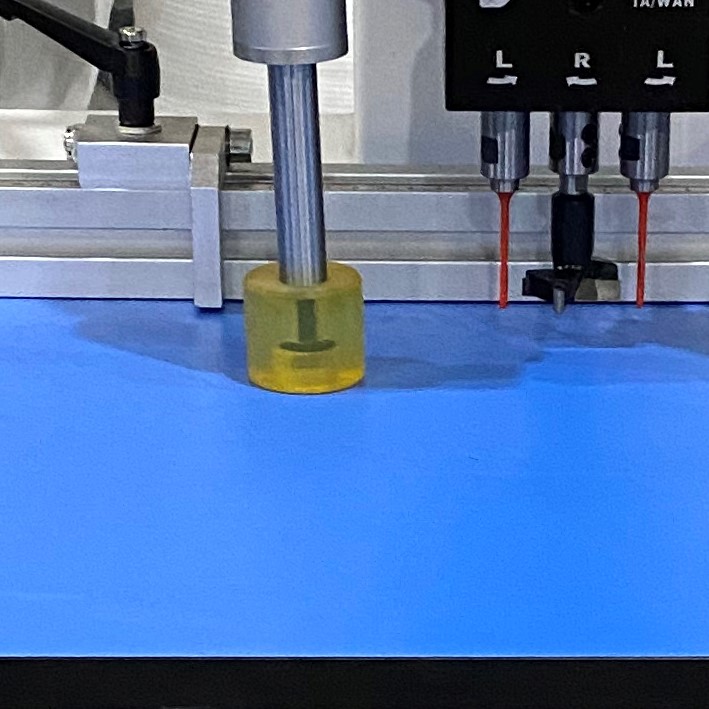

Workbench
The worktable is made of high-strength composite material, with high compressive strength and no deformation
Operation panel
Equipped with automatic knife calibration function and button operation; meanwhile, an emergency stop button is added, which can immediately stop the machine operation in an emergency, which is safer.
Tips
• About the service
Sincerely thank you for your support and trust in us, if you have any questions about the product or that can be solved within our ability, you can contact us at any time, we are at your service 24/7.
• About delivery
The production time of regular products is generally 10 days. We will arrange your products as soon as your order is confirmed to ensure that every link will be processed for you at the fastest speed, and that the order will be dispatched as soon as possible. If you have other Ideas and requirements, please contact us in time to handle them properly.
• About delivery fee
You can specify your freight forwarder, or we can provide it, and the specific cost is determined by the actual situation at that time. We can also provide door to door service.
• About after-sales
The machine and motor are guaranteed for one year, and we will arrange for technicians to call or video to guide you to debug the equipment. Regarding the replacement of accessories in the later period, we ensure that the supply is sufficient and only the cost is charged. We strive to allow every customer to buy the ideal product.
