3 Axis Cnc Router Woodworking CNC Machine For Panel Furniture Production
The 3 Axis Cnc Router Woodworking CNC Machine used to process panel furniture:
1. Dual-purpose door panel and cabinet: From a structural point of view, the four-process is a simple tool-changing model, which uses four spindles to realize the tool-changing function through pneumatic switching. It can be used for the function of opening and punching in the cabinet body, and it can also be used for simple door type processing.
2. Simple operation: Compared with the drilling and cutting center, the four-process cutting machine is simpler to operate and easier to learn, and once one spindle fails, the equipment can also complete the function of cutting and punching with three spindles.
3. High cost performance: As an entry-level CNC cutting equipment, the four-process cutting machine still has great advantages in processing panel furniture. It is suitable for small and medium-sized furniture factories. It is also suitable for furniture factories that have certain pressure on capital. a good choice.
| Name | 3 Axis Cnc Router Woodworking CNC Machine For Panel Furniture Production |
| Control System | Taiwan Baoyuan System |
| Drive motor | 1.5kw Zhishan servo motor 2+1 ( braking ) |
| Spindle | 6.0kw Spindle X4, speed 18000 rpm |
| Frequency converter | Inverter 7.5KW (KEKEN) |
| Guide rail, slider | Taiwan, Y axis adopts 30#, XZ axis adopts 25#, frame and beam adopt flange slider |
| Rack | Taiwan Jingte high-precision 2-mode helical rack, rack with additional quenching process |
| Screw rod | 2510 Taiwan TBI ball screw |
| Bearing | Japan angular contact bearing x2, domestic deep groove ball bearing x1 |
| Countertop | 1220X2440mm vacuum adsorption, 6 partitions |
| Racks, beams | National standard rectangular square tube welding |
| Vacuum Pump | 7.5kw Water-cooled circulating pump |
| Electrical components | Schneider Electric |
| Processing speed | 0-25m/min |
| No load speed | 0-80m/min |
| Accurate relocation | ±0.2mm |
| Total power | about 22.5 kw |
| Total weight | about 3 tons |
| Effective working stroke | 244X122X20cm (L x W x H) |
| Dimensions | 380X240X220cm (L x W x H) |
| Voltage | 380V±5% 50HZ1±1% |

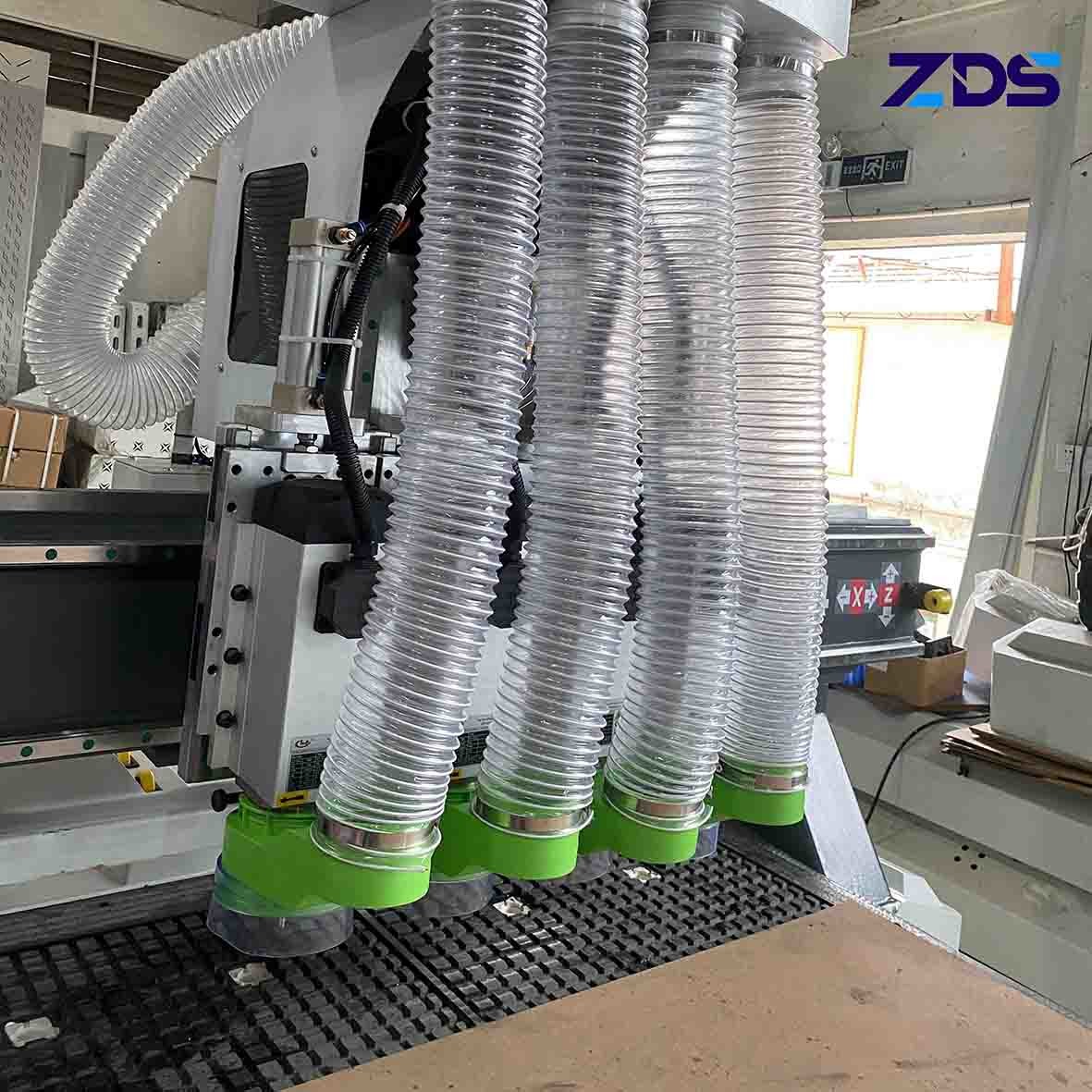

Reduce dust pollution, central dust collection + secondary dust removal device, vacuum cleaner absorbs most of the dust generated in the production and blanking process to ensure the production environment of the factory
Automatic oil filling: CNC electromagnetic oil pump, CNC oil filling, convenient and fast, effectively protect the machine and keep the machine running normally

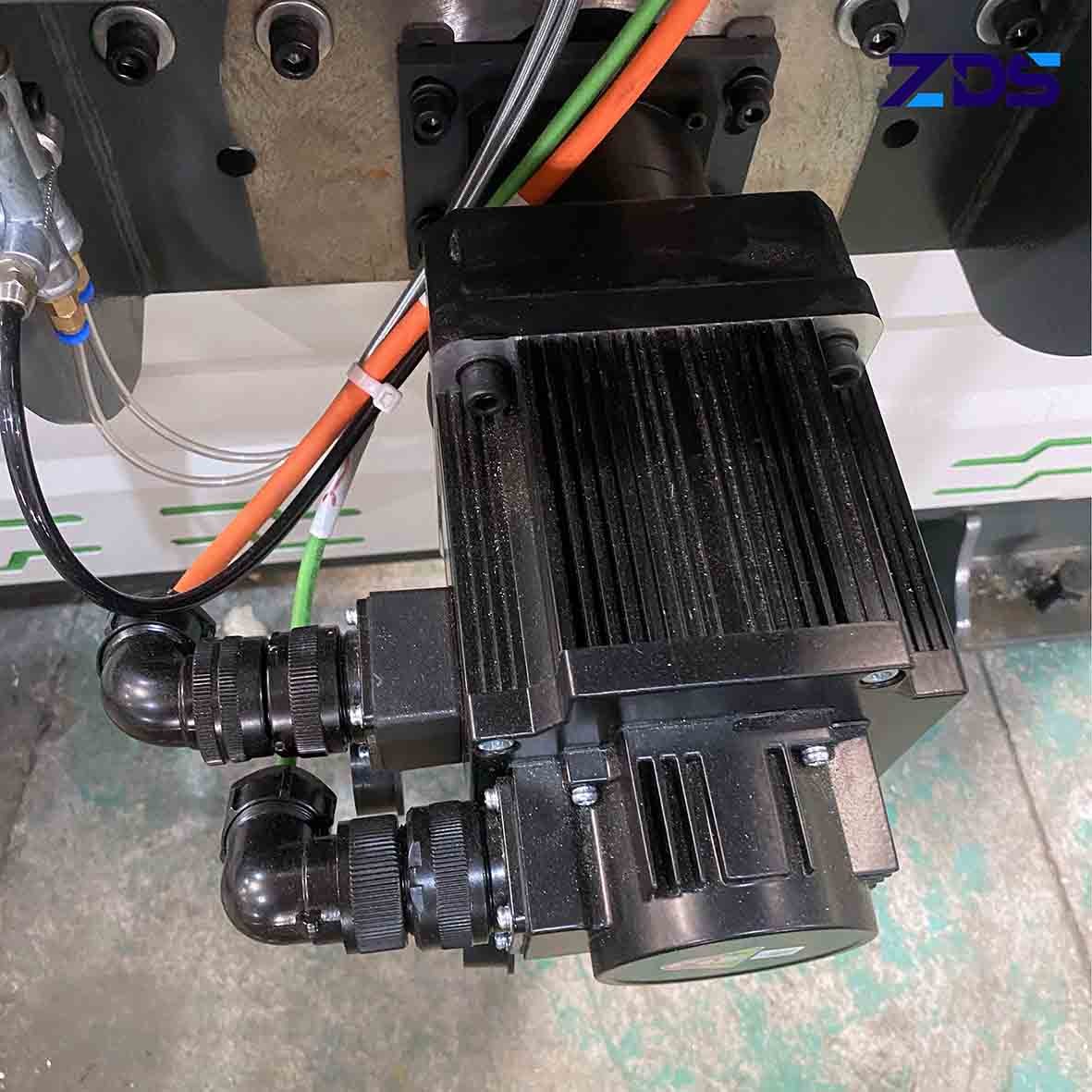

International standard servo motor: using international standard servo motor, stable output, strong power, high speed, good heat resistance and longer service life

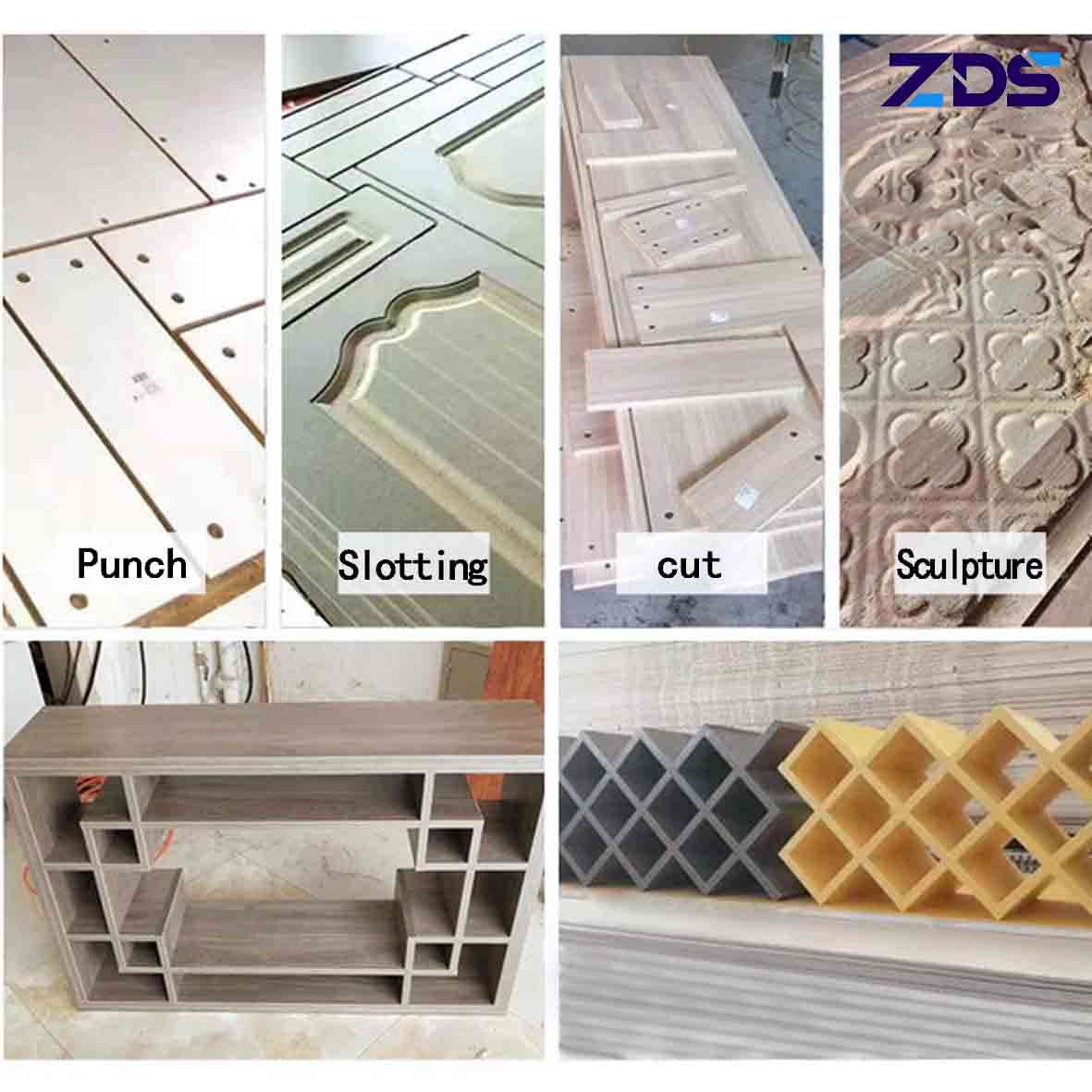

Application scenario display
