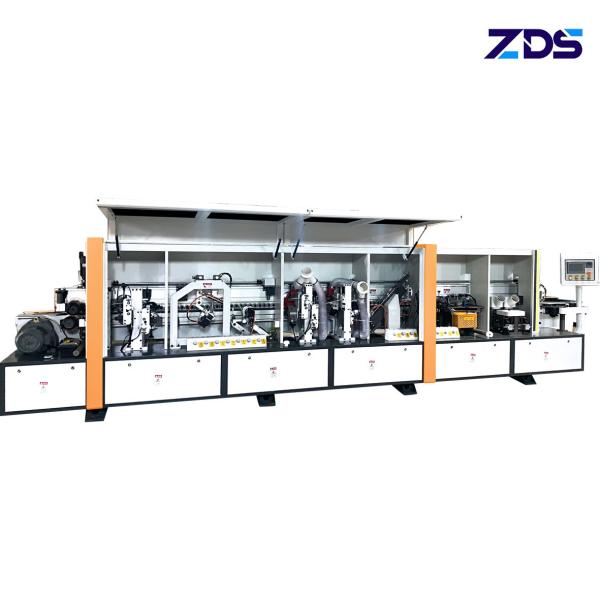

| Name | Automatic Edge Banding Machines With Pre-Milling And Double TrimmingFunction |
| Model | ZDS-468J |
| Working pressure | 0.6Mpa |
| Panel thickness | 10-60mm |
| Edge thickness | 0.4-3mm |
| Min. panel | 300*60mm 150*150mm |
| Voltage | 380V-3HP |
| Power | 16kw |
| Weight | 2000kg |
| Dimensions | 6600*900*1600mm |
The main function of the machine is introduced:
1. PLC intelligent control, independent liquid crystal display can see the running process of the machine more clearly and comprehensively, which is convenient, quick and easy to use, real-time monitoring, real-time adjustment, more accurate, high-efficiency production, and the edge sealing effect is not compromised.
2. Pre-milling, the first process of the plate entering the conveyor belt, the diamond double milling cutter is used to trim the edge chipping, corrugation and burr phenomenon of the plate cover again, so as to achieve a better edge sealing effect.
3. The edge-sealing gluing device heats the sol through the gluing pot, and adopts the spiral structure to deliver the glue. The gluing speed is fast, uniform, and the adhesive force is firm.
4. Edge-sealing pressing device, the edge-sealing strip and plate are pressed by rollers, and the sticking is firmer.
5. The flush device, through the structure of automatic mold tracking and high-frequency high-speed motor, ensures that the cut surface of the edge banding belt is smooth and smooth, and has the function of flushing against the plate to enhance the stability of the flush.
6. Rough trimming device, the cutter at the rough trimming part is a flat knife, which is used to trim the excess edge banding material on the upper and lower parts of the edge band of the processed sheet. High-frequency high-speed motor is used to achieve rapid cutting, so that the upper and lower parts of the trimmed sheet are flat and smooth.
7. Refining device, the finishing knife is R2 oblique knife, which can leave 5-6 wires for the next scraping process. The automatic tracking of the mold and the high-frequency motor are used to achieve fast cutting, and the R2 oblique knife is repaired. radian.
8. Edge scraping device, profile scraping, used to remove the secondary wave marks caused by the cutting process of non-linear motion, so that the upper and lower parts of the plate are more smooth and tidy, and the edge scraping can also adjust the size of the edge arc of the edge band , so that the edge sealing effect is better.
9. Polishing device, use high-quality cotton polishing wheel to clean the processed plate, remove excess glue stains, and make the edge banding section smoother and tidy through polishing.
PLC intelligent control, independent liquid crystal display can see the running process of the machine more clearly and comprehensively, which is convenient, quick and easy to use, real-time monitoring, real-time adjustment, more accurate, high-efficiency production, and the edge sealing effect is not compromised.
Pre-milling, the first process when the sheet enters the conveyor belt, the diamond double milling cutter is used to trim the edge chipping, corrugation and burr phenomenon of the sheet cover again, so as to achieve better edge sealing effect.
The edge-sealing gluing device heats the sol through the gluing pot, and adopts the spiral structure to deliver the glue. The gluing speed is fast, uniform, and the adhesive force is firm.
The end trimming device, through the structure of automatic mold tracking and high-frequency high-speed motor, ensures that the cut surface is smooth and smooth, and has the protection function of flushing the plate to enhance the stability of the flush.
Rough trimming device, the cutter at the rough trimming part is a flat knife, which is used to trim the excess edge sealing material on the upper and lower parts of the edge banding of the processed sheet.
Finishing device, the finishing knife is R2 inclined knife, which can leave 5-6 wire allowance for the next scraping process. The automatic tracking of the mold and the high-frequency motor are used to achieve fast cutting, and the R2 inclined knife is used to repair the radian.
Scraping device, profile scraping, is used to eliminate the secondary wave marks caused by the cutting process of non-linear motion of trimming, so that the upper and lower parts of the plate are more smooth and tidy. better.
The polishing device cleans the processed plate with a cotton polishing wheel, removes excess glue stains, and makes the edge banding section smoother and tidy through polishing.
