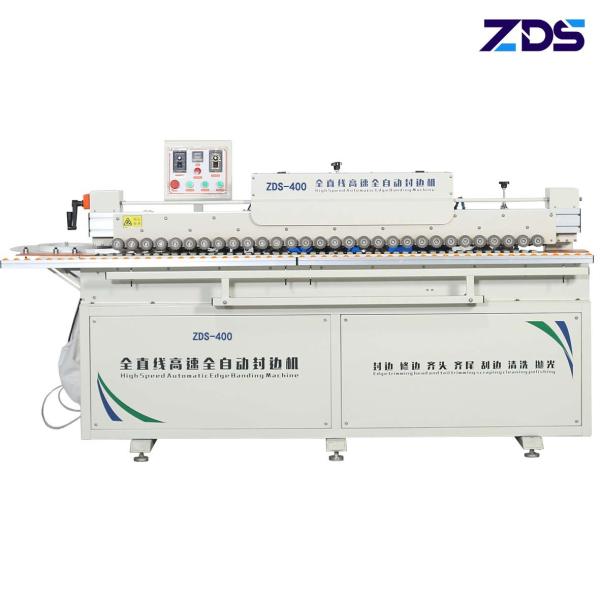

Small Automatic Edge Banding Machine With Trimming And Polishing Function
Main functions: gluing, tape cutting, trimming, end trimming, tail-to-end alignment, scraping, polishing, vacuuming
Purpose and scope of application: The automatic edge banding machine adopts foreign advanced technology, and the glue application device structure is an advanced lower-mounted glue box. This structure uses glue on the glue shaft, and the glue is evenly applied. feed. It can seal the straight edge of the side of the sheet. The machine is compact and miniature, and occupies a small area. It is widely used in furniture processing, cabinet processing, edge sealing of interior decorative panels and many other aspects.
Features
♦ Guided multi-function operation interface, pneumatic control, no manual adjustment, very easy to use, no need for special job skills training
♦ Complete functions, the machine can realize multiple processes such as gluing and welting, flushing, flushing, rough trimming, fine trimming, polishing, etc., all at one time.
♦ Automatic trimming, can automatically break the tape, double-sided glue, light and portable, automatic board feeding, dual-use curve or straight line, stepless speed regulation, user-friendly design, small footprint
♦ To save costs for you, only international common parts are used for motors and accessories, which reduces the high-cost maintenance costs caused by special devices, and at the same time reduces the purchase cost of later accessories
| Name | Small Automatic Edge Banding Machine With Trimming And Polishing Function |
| Rated voltage | 220v |
| Rated power | 3.55kw |
| Rated air pressure | 0.4-0.6Mpa |
| Heating power | 800w |
| Heating time | 5-10min |
| Edge type | straight line |
| Conveyor belt power | 180w |
| Conveyor belt speed | 0-14m/min |
| Trimming motor power | 800w*2 |
| Trimming motor speed | 24000rpm |
| Polishing motor power | 180w*2 |
| Polishing motor speed | 5500rpm |
| Strip width | 10-55mm |
| Strip thickness | 1-3mm |
| Sheet thickness | 10-55mm |
| Sheet width | ≥60mm |
| Size | 2400*700*1200mm |
| Machine weight | 370kg |
details
Button-type control panel, simple and intuitive operation control, all functions can be started and stopped with one key, speed is adjustable, temperature is digitally displayed, and the text logo can be changed according to needs.
The front and rear alignment cutting device is composed of front flush and rear flush, controlled by solenoid valve, and has the function of flush mounting plate protection. It is cut by a special saw blade and has better stability.
Up and down polishing, driven by dual motors, use cotton polishing wheel to clean the processed plate, remove excess glue stains, and make the edge sealing end surface smoother and tidy by polishing
